| Size and weight | |||||
| Max.Cap | A | B | C | L | N.W |
| (t) | mm | mm | mm | mm | (kg) |
| 1t | 55 | 65 | 35 | 420 | 35kg |
| 2t | 72 | 80 | 45 | 600 | 35kg |
| 3t | 92 | 100 | 55 | 730 | 45kg |
| 5t | 98 | 120 | 70 | 850 | 58kg |
| 10t | 130 | 140 | 80 | 900 | 88kg |
| 15t | 150 | 160 | 80 | 950 | 92kg |
| 20t | 165 | 180 | 90 | 1120 | 175kg |
| 30t | 220 | 380 | 105 | 1350 | 450kg |
| Specification | |
| Accuracy class | OIML III |
| Tare range | 100%F.S. |
| Zero range | 4%F.S. |
| Safe overload | 120%F.S. |
| Ultimate overload | 500%F.S. |
| Overload alarm | 100%F.S.+9e |
| Battery | 6V/10Ah |
| Adaptor | DC9V |
| Radio frequency | 450MHZ |
| Radio distance | >100m |
| Safe distance | |
| Temperature | Safe distance |
| 1000°C | 1.2m |
| 1200°C | 1.5m |
| 1400°C | 1.8m |
| 1600°C | 2.0m |
| Functions | |
| Zero | Tare |
| Date/time | Overload alarm |
| Tare/set | Batter supervision |
| Acc/del/view | Resolution switch |
| Digital calibration | |

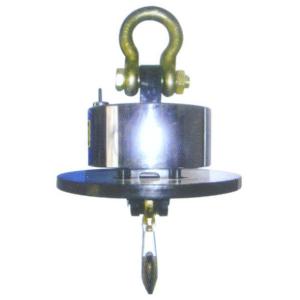

| Features |
| High-strength load receptor |
| Steel chrome plated case |
| American standard bow shackle |
| American standard eye hook |
| 2*rechargeable batteries |
| Optional indicators |
| Capacity:1t~30t |
