Handheld Industrial Remote Controls For Gantry Overhead Bridge Crane

Handheld Industrial Remote Controls For Gantry Overhead Bridge Crane

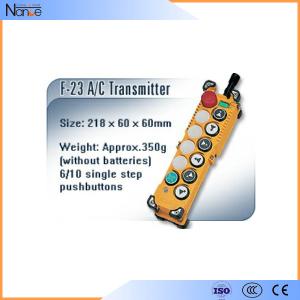

Transmitter
• Dimension: 218x60x60mm
• Weight: Approx.350~365g (without batteries)

Receiver
• Dimension: 290x230x70mm
• Weight: 1900 g (without wire cable)
• Receiver Power Supply: 24/48/110/220/380 VAC

The feature F23-A/C TELECRANE Industrial remote controls
F23-A 8 buttons 6single speed button+ 1 urgent stop red mushroom button + 1 start button and 1 safety key.

F23-C 8 buttons 6single speed button+ 1 urgent stop red mushroom button + 1 start button and 1 safety key.

Handheld Industrial Remote Controls For Gantry Overhead Bridge Crane
General specification

• Frequency 310.3-331.2 MHz
• Frequency control quartz crystal
• Output terminal full sealed relay 20A/250V passive switch signal .
• Structure glass fiber
• Receiving high frequency sensitivity >-110dBm
• Transmitting high frequency output power<4dBm
• Reaction rate 0.065s.
• Protection IP65
• Operation distance 100 meters
• Convenient Windows port to operate and copy function.
• UP/Down East/West South/North keys can be set to mutual rejection.
• The key Start function can set to start skip or common by computer.
• Surpass 4.3 billion Identification code memory.
• Temperature -30 to +80 degrees.
• Low energy 2 pcs AA battery using one month.
• Special anti-vibration design for moving equipment.

AN INDUSTRIAL RADIO REMOTE CONTROL DIFFERS FROM COMMON WIRELESS CONTROLLERS IN DESIGN AND MANUFACTURING ASPECTS LIKE
