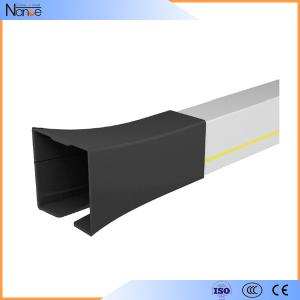

Power Multiple Insulation Conductor Rails With Transfer Guides
Quick Details
Application
The ranges of applications of HFP PVC power multiple insulation conductor rails with transfer guides:
Design features
Compact arrangement, corrosion resistance and simple assembly are its essential features.
Housing
Color green, PVC housing for 4 conductors. Standard section 4 m.
Other sections are available.
The ground conductor is identified by international color code.
Phase reversing prevented by design of the collector and housing.
Power Multiple Insulation Conductor RailsTechnical Parameters
HFP 52
| Model | Pole No. | Cross section | Max. current | Leakage-distance | Max. voltage | Resistance | Weight |
| HFP52-4-10/50 | 4 | 10 | 50 | 55 | 600 | 1.656 | 2.05 |
| HFP52-5 -10/50 | 5 | 10 | 50 | 15 | 600 | 1.656 | 2.14 |
| HFP52-6-10/50 | 6 | 10 | 50 | 15 | 600 | 1.656 | 2.23 |
| HFP52-7-10/50 | 7 | 10 | 50 | 15 | 600 | 1.656 | 2.32 |
| HFP52-4-15/80 | 4 | 15 | 80 | 55 | 600 | 1.137 | 2.32 |
| HFP52-5-15/80 | 5 | 15 | 80 | 15 | 600 | 1.137 | 2.44 |
| HFP52-6-15/80 | 6 | 15 | 80 | 15 | 600 | 1.137 | 2.58 |
| HFP52-7-15/80 | 7 | 15 | 80 | 15 | 600 | 1.137 | 2.71 |
| HFP52-4-20/100 | 4 | 20 | 100 | 55 | 600 | 1.011 | 2.47 |
| HFP52-5-20/100 | 5 | 20 | 100 | 15 | 600 | 1.011 | 2.65 |
| HFP52-6-20/100 | 6 | 20 | 100 | 15 | 600 | 1.011 | 2.83 |
| HFP52-7-20/100 | 7 | 20 | 100 | 15 | 600 | 1.011 | 2.99 |
| HFP52-4-25/120 | 4 | 25 | 120 | 55 | 600 | 0.713 | 2.63 |
| HFP52-5-25/120 | 5 | 25 | 120 | 15 | 600 | 0.713 | 2.83 |
| HFP52-6-25/120 | 6 | 25 | 120 | 15 | 600 | 0.713 | 3.02 |
| HFP52-7-25/120 | 7 | 25 | 120 | 15 | 600 | 0.713 | 3.27 |
| HFP52-4-35/140 | 4 | 35 | 140 | 55 | 600 | 0.522 | 2.97 |
| HFP52-5-35/140 | 5 | 35 | 140 | 15 | 600 | 0.522 | 3.25 |
| HFP52-6-35/140 | 6 | 35 | 140 | 15 | 600 | 0.522 | 3.58 |
| HFP52-7-35/140 | 7 | 35 | 140 | 15 | 600 | 0.522 | 3.87 |
|
HFP Series Multiple-Poles Conductor Rail System |
|||
|
Max. voltage |
600v |
Bending strength |
75N/mm²±10% |
|
Dielectric strength |
30-40kv/mm |
Tensile strength |
40N/mm²±10% |
|
Special resistance |
5×1015 Ohm×cm |
Leakage resistance |
CTI600-2,7 |
|
Surface resistance |
1013 Ohm×cm |
Design and Manufacturing Standard |
GB7251.2-2006 |
|
Distance between each suspension bracket (m) |
1.2 |
Rail length per piece (m) |
4 |
|
Flame retardant |
Class B1-no flaming particles, self-extinguishing |
||
|
Permissible Ambient temperature |
Standard insulation -30℃- +70℃|High temperature insulation -20℃- +115℃|Low temperature insulation -40℃- +80℃ |
||
